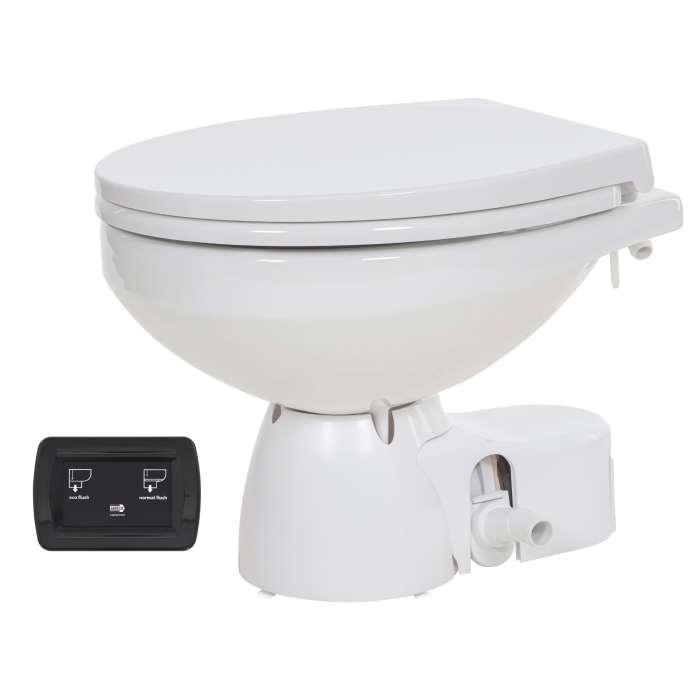

Quiet Flush E2 Marine Toilet with Fresh Water Rinse, 24 volt | Jabsco 38045-4194
Special Price
MSRP
$986.66
SKU
Brand: JABSCOQty In Stock: 0
JABSCO-38045-4194
This 24 volt Quiet Flush E2 toilet with regular sized bowl features a flush cycle which you'll find comparable to your household toilet hence the Quiet Flush reference. This particular fresh water model is equipped with a solenoid valve and siphon breaker which allows you to utilize your existing onboard pressurized fresh water as the rinse water source.
Quiet Flush E2 Marine Toilet with Fresh Water Rinse, 24 volt | Jabsco 38045-4194 is available to buy in increments of 1
| Warehouse | Available |
| Florida | 0 |
| Michigan | 0 |
| Ohio | 0 |
| Tennessee | 0 |
| Wisconsin | 0 |
- Multifunction Touch Panel
- Rinse Water Source: Onboard Pressurized Fresh Water
- Bowl Size: Regular Sized Bowl
- Seat: Soft Close Composite seat
- Bowl Height: 14.25 inches to top of seat cover
- Bowl Color: White
- Overall Bowl Dimensions: 14.25 inches High x 14.4 inches Wide x 18.62 inches deep (see attached line drawing)
- Voltage: 24 volt DC operation
- Amp Draw: 10
- Recommended Fuse Size: 13
- Inlet: 3/4 inch barb connection
- Discharge: 1 inch barbed discharge connection included (1 inch to 1-1/2 inch adapter is supplied to accommodate 1-1/2 inch hose)
- Multifunction Touch Panel allows the operator to select a normal or Eco flush which simultaneously rinses, drains, and fills the bowl.
- Multifunction Touch Panel also features a Hidden Dry bowl feature which is ideal when motoring or sailing as it avoids splashing. Activate the dry bowl feature by holding the eco flush and normal flush simultaneously for 4 seconds.
- Total discharge head should not exceed 4 feet
- Hygienic, pure white china bowl for ease of cleaning
- Quick release motor for easy servicing
- Base is rotatable
- Weight: 38.6 lbs.
- Seat and Lid Assembly: Soft Close part number 58104-2000
- Service kit: 38595-1000
- Replaces Jabsco 37045-1094, 37045-4194, 37045-4094, 38045-4194RSP
| Manufacturer Part No. | 38045-4194 |
|---|---|
| Brand | JABSCO |
| Shipping/Dimensional Weight | 59.800000 |
| Actual Weight | 0 |
| Availability | Out of Stock |
| Model | Quiet Flush |
| Holding / Waste Tank Capacity | Not Applicable |
| Flush Water Tank Capacity | Not Applicable |
| Rinse Water Source | Onboard Pressurized Fresh Water |
| Discharge Options | Not Applicable |
| Hold Down Brackets | Not Applicable |
| Toilet Seat Tabs | Standard |
| Toilet Seat and Cover | Standard Close |
| Flush Control | Three-way Control Panel |
| Height | 14.375 Inches |
| Depth | 18.875 Inches |
| Width | 14.75 Inches |
| Bowl Type | Household / Regular |
| Ships free when order qualifies | Yes |
| Hazmat Fee | No |
