4 gallon Water Heater, 230 volt | Isotemp 601531S000003
Special Price
MSRP
$984.00
SKU
Brand: IsotempQty In Stock: 0
ISOTEMP-601531S000003

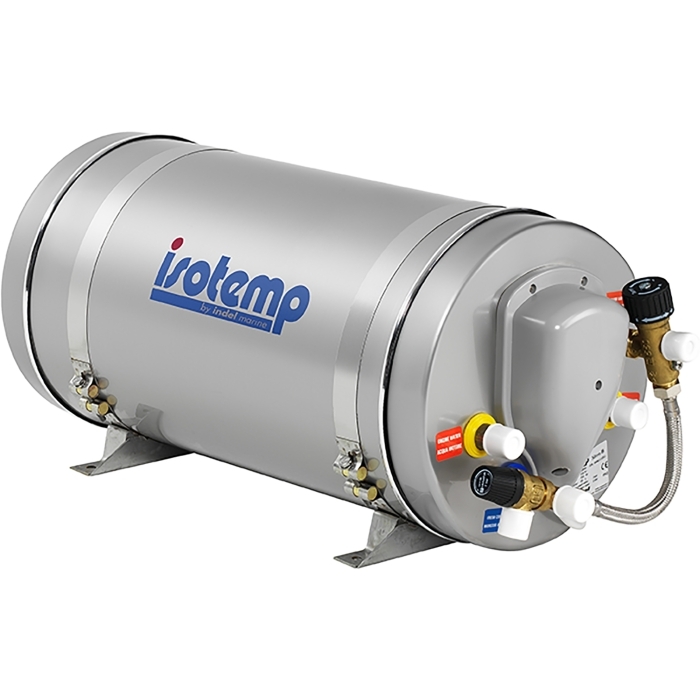

This Isotemp Slim 15 marine hot water heater with front heat exchanger is equipped with a safety mixing valve and features a stainless steel jacket and tank.
4 gallon Water Heater, 230 volt | Isotemp 601531S000003 is available to buy in increments of 1
| Warehouse | Available |
| Florida | 0 |
| Michigan | 0 |
| Ohio | 0 |
| Tennessee | 0 |
| Wisconsin | 0 |
- 4 Gallon Capacity
- 230V Operation at 50/60Hz
- Amp Draw 3.26A
- Suggested Breaker 20A
- Suggested Wire Size: Stranded #12-3
- Stainless Steel Tank and Exterior Jacket
- 750 WATT Heating Element (MFG# SEE00019LA)
- 5.0 bar / 70 psi safety valve (MFG # SFD00023AA)
- Safety Thermostat (MFG# SEA00042LA)
- Service Thermostat (MFG# SEA00041LA)
- Temperature control safety mixing valve allows the user to mix the boat's water witht he hot water to deliver desired temperature at the faucet
- Mixing valve action expedites recovery time and extends the volume of hot water provided by a smaller tank
- Temperature control safety mixing valve protects users from scalding water
- Versatile mounting straps allow for the easy attachment to a bulkhead or deck
- Cold Water Inlet 1/2 Inch Male NPT
- Warm Water Outlet 1/2 Inch Male BSP
- Engine Water Inlet/Outlet 1/2 Inch Male NPT.
- Unit Dimensions: 11.7 In. High X 11.25 In. Wide X 21.25 In. Deep
- CE Approved
- Tank is backed by a 5-Year Limited Warranty
| Manufacturer Part No. | 601531S000003 |
|---|---|
| Shipping/Dimensional Weight | 35.000000 |
| Actual Weight | 35 |
| Brand | Isotemp |
| Availability | Out of Stock |
| Model | Slim |
| Heat Exchanger | Front |
| Exterior / Jacket | Stainless Steel |
| Tank Material | Stainless Steel |
| Capacity | 4 Gallon |
| Height | 11.7 Inches |
| Depth | 21.25 Inches |
| Width | 11.25 Inches |
| Orientation | Horizontal, Bulkhead(horizontal), Bulkhead(vertical) |
| Safety Mixing Valve | Included |
| Frequency | 50/60 Hz |
| Ships free when order qualifies | Yes |
| Hazmat Fee | No |
