4.2 gallon Water Heater, 230 volt | Isotemp 601631QX00003
Special Price
MSRP
$1,308.00
SKU
Brand: IsotempQty In Stock: 0
ISOTEMP-601631QX00003

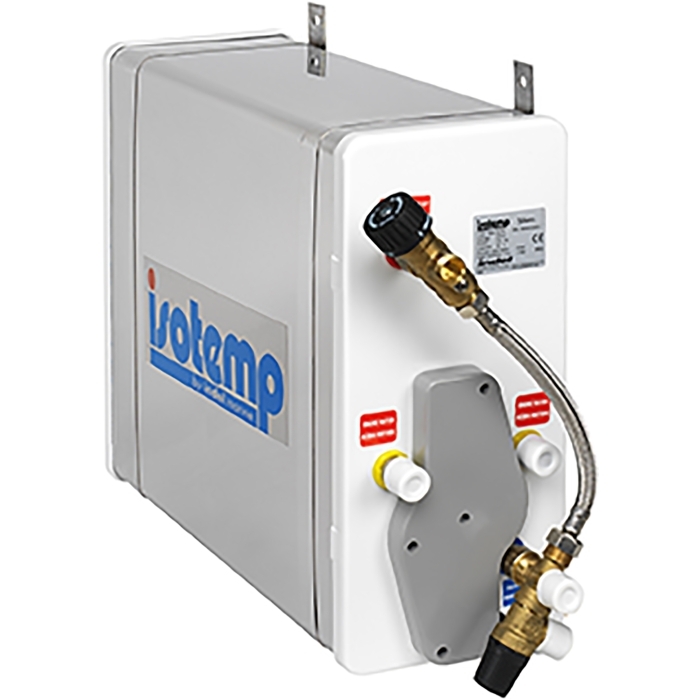

This Isotemp Slim Square 16 marine hot water heater with front heat exchanger is equipped with a safety mixing valve and features a stainless steel jacket and tank.
4.2 gallon Water Heater, 230 volt | Isotemp 601631QX00003 is available to buy in increments of 1
| Warehouse | Available |
| Florida | 0 |
| Michigan | 0 |
| Ohio | 0 |
| Tennessee | 0 |
| Wisconsin | 0 |
- 4.2 Gallon Capacity
- 230V Operation at 50/60Hz
- Suggested Breaker 20A
- Suggested Wire Size: Stranded #12-3
- Stainless Steel Tank and Exterior Jacket
- 750 WATT Heating Element (MFG# SEE00019LA)
- 5.0 bar / 70 psi safety valve (MFG # SFD00023AA)
- Safety Thermostat (MFG# SEA00042LA)
- Service Thermostat (MFG# SEA00041LA)
- Temperature control safety mixing valve allows the user to mix the boat's water with the hot water to deliver desired temperature at the faucet
- Mixing valve action expedites recovery time and extends the volume of hot water provided by a smaller tank
- Temperature control safety mixing valve protects users from scalding water
- Versatile mounting straps allow for the easy attachment to a bulkhead or deck
- Cold Water Inlet 1/2 Inch Male NPT
- Warm Water Outlet 1/2 Inch Male BSP
- Engine Water Inlet/Outlet 1/2 Inch Male NPT.
- Unit Dimensions: 16.75 In. High X 7.25 In. Wide X 23.25 In. Deep
- CE Approved
- Tank is backed by a 5-Year Limited Warranty
- replaces Isotemp 601631Q000003
| Manufacturer Part No. | 601631QX00003 |
|---|---|
| Shipping/Dimensional Weight | 41.000000 |
| Actual Weight | 41 |
| Brand | Isotemp |
| Availability | Out of Stock |
| Model | Slim Square |
| Heat Exchanger | Front |
| Exterior / Jacket | Stainless Steel |
| Tank Material | Stainless Steel |
| Capacity | 4.2 Gallon |
| Height | 16.75 Inches |
| Depth | 23.25 Inches |
| Width | 7.25 Inches |
| Orientation | Vertical, Bulkhead(vertical) |
| Safety Mixing Valve | Included |
| Frequency | 50/60 Hz |
| Ships free when order qualifies | Yes |
| Hazmat Fee | No |
